Mini-Mist Mist Collector
Machine-Mountable Mist Collection
Compact, machine-mountable mist collectors dedicated for use on combined machine operations.
breadcrumb >> list
Capt-Air supplies the Mini-Mist oil mist collector for CNC machining, grinding, milling and drilling to collect oil, water-soluble and synthetic mists.

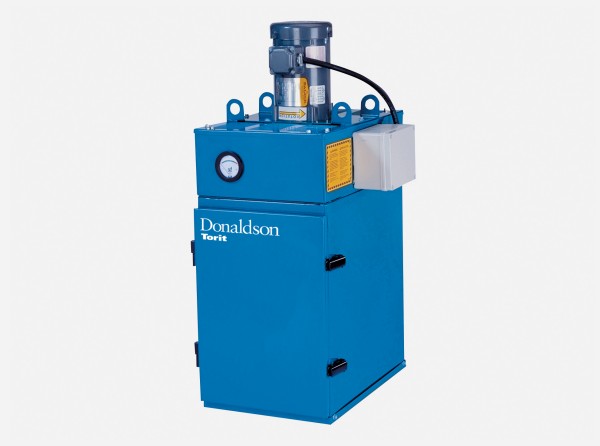

Donaldson Torit Mini-Mist Mist Collector
The Donaldson Torit® Mini-Mist is designed for CNC machining, grinding, turning, milling and drilling operations. It is used to collect coolant mists such as oil, water-soluble and synthetic coolant mists.
The Mini-Mist design is compact and available in two models; MM 500 for light-duty operations and MM 1200 for machines requiring higher airflow or applications that require a mist and smoke collector.
Designed to Filter Contaminants from Machining Operations and Industrial Processess
- CNC machining
- Grinding
- Turning
- Milling
- Drilling operations
Features
- Three stage filtration for high filtration efficiency and optimum filter life
- Handles mist, smoke, and particulate applications up to 2,038 m³/h / 1200 cfm
- Standard Minihelic® gauge indicates when filter maintenance is required
- Hinged access doors makes filter changeout easy and simple
- Provides a cleaner work environment for maximum productivity
- Helps support OSHA Clean Air Standards
- Optional HEPA filter is available on all models
Mini-Mist Mist Collector Datasheet
Standard and Optional Features
| Standard and Optional Features | Standard | Optional |
|---|---|---|
| Three-stage filtration | ✔ | |
| Direct-drive fans – .5, 1, and 1.5 HP | ✔ | |
| Hinged access door | ✔ | |
| High-loft, fine-fiber primary filter | ✔ | |
| 10-year warranty | ✔ | |
| Inlet hose kit | ✔ | |
| High efficiency first-stage filter (MM 1200 only) | ✔ | |
| Inlet plenum (MM 1200 only) | ✔ | |
| Support legs (MM 1200 only) | ✔ |
